功能说明：
适用范围：适合易碎不易自动计量的物品，如：薯片、馍片、锅巴、果冻、水饺、汤圆等的包装。
Suitable for frangible goods and those goods which are hard on auto metering, such as potato chips, steam bread chips, crispy rice, fruit jelly, boiled dumpling, rice dumpling etc.
主要性能和特点：
Function and structure characteristics:
1.设计简单、合理、性能稳定，噪音低，易维护，链斗式传送。
2.人工计量投料包装，链斗式投料方便投奖卡、奖品、或多种物料同时包装，没有物料时机器不会出空袋，损耗少，整套配置经济实惠。
1.compact and ational structure, stable performance, low noise, easy maintainance bucket chain conveyor.
2.Feeding and packaging with manual metering, the bucket chain conveyer is convenient on feeding. The award card, award or several kinds of material can be packaged at the same time, no empty bags will be delivered when there is no material, less waste, complete set of the machine is economical and practical.

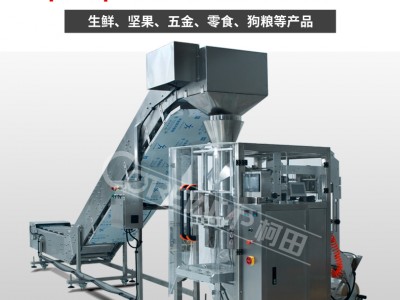

Complete set of this machine
1. ZV-420 principal machine
2.Bucket chain conveyor
3.Finished product conveyer

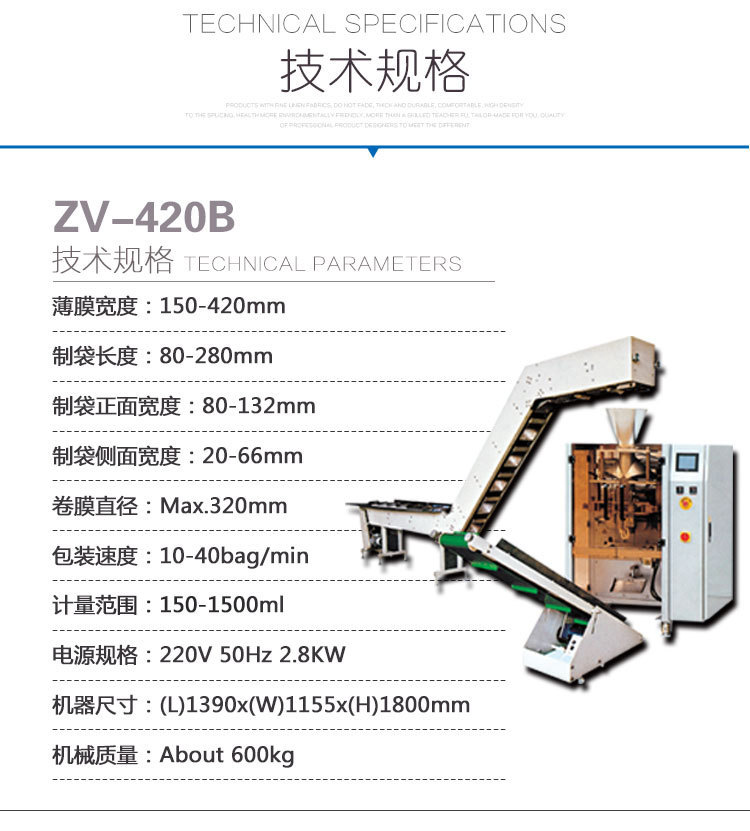

技术规格
| 机型type | ZV-420 |
| 耗气量Air consumption | 2.5m3/min.6kg/cm2 |
| 包装膜宽度Max film wiidth | 180-420mm |
| 制袋长度bag lenght | 80-300mm |
| 制袋宽度bag width | 80-200mm |
| 卷材外径Max. external diameter of coiled material | Max.300mm |
| 包装速度packing speed | 5-70bags/min |
| 薄膜厚度packing thickness | 0.04-0.08mm |
| 电源规格power | 220V.50/60Hz.2.4KVA |
| 外形尺寸Dimension | (L)1100x(W)925x(H)1620mm |
| 机器总重量total weight of the machine | 650kg |
