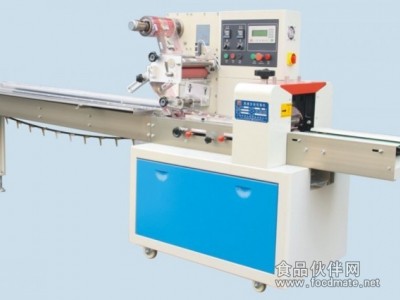

QD-250型枕式包装机
主要性能和结构特点
1.双变频器控制,袋长即设即切,无需调节空走,一步到位,省时省膜。
2.人机界面,参数设定方便快捷。
3.故障自诊断功能,故障显示一目了然。
4.高感度光电眼色标跟踪,数字化输入封切位置,使封切位置更加准确。
5.温度独立PID控制,更好适合各种包装材质。
6.定位停机功能,不粘刀,不浪费包膜。
7.传动系统简洁,工作更可靠,维护保养更方便。
8.所有控制由软件实现,方便功能调整和技术升级,落后。
适用范围
适合于香皂、冰棒、雪糕、棒棒冰、方便面、毛巾、湿巾等长条状、圆型、方型等有规则物品的包装。
技术规格
型 号 | QD-250B |
薄膜宽度 | Max.250mm |
制袋长度 | 60~190mm 120~350mm |
制袋宽度 | 30~110mm |
产品高度 | Max.40mm |
膜卷直径 | Max.250mm |
包装速度 | 40~230包/分 |
电源规格 | 220V,50/60HZ,2.4KVA |
机器尺寸 | (L)3770×(W)670×(H)1450 |
机器质量 | 800Kg |
QD-250B Flow Packing Machine
Main characteristic:
1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Application:
Suitable for packaging soft, strip and unorganized objects like towels, tissues, noodles, egg rolls, sausages, sleeve-fish, popsicle, soft candies, biscuits, fresh fruits etc.
Specification
Film width | Max.250mm |
Bag length | 65~190mm or 120~280mm |
Bag width | 30~110mm |
Product height | Max. 40mm |
Film roll diameter | Max.320mm |
Packing speed | 40~230 bag/min. |
Power supply | 220V,50/60HZ,2.4KVA |
Machine size | (L)3770X(W)670X(H)1450 |
Machine weight | 800Kg |
