D-Malic acid
UV-method
for the determination of D-malic acid in foodstuffs and other
materials
BOEHRINGER MANNHEIM / R-BIOPHARM
Enzymatic BioAnalysis / Food Analysis
For use in in vitro only Store at 2-8°C
Cat. No. 1 215 558
Test-Combination for 3 × approx. 10 determinations For recommendations for methods and standardized procedures see
references (2).
Principle (Ref. 1)
D-Malic acid (D-malate) is oxidized to oxaloacetate by nicotinamideadenine
dinucleotide (NAD) in the presence of D-malate dehydrogenase
(D-MDH). Oxaloacetate is immediately split by the same enzyme to pyruvate
and carbon dioxide.
The amount of NADH formed is stoichiometric to the amount of D-malate.
The increase in NADH is measured by means of its light absorbance at 334,
340 or 365 nm.

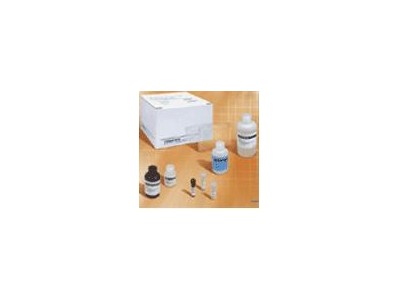

The Test-Combination contains
1. Bottle 1 with approx. 30 ml solution, consisting of:
hepes1 buffer, pH approx. 9.0
2. Bottle 2 with approx. 210 mg NAD, lyophilizate
3. Three bottles 3 with D-MDH, decarb., lyophilizate, each approx. 8 U
4. D-Malic acid assay control solution for assay control purposes (measurement
of the assay control solution is not necessary for calculating the
results.) Use the assay control solution undiluted. (Expiry date: see pack
label)
Preparation of solutions
1. Use content of bottle 1 undiluted.
2. Dissolve contents of bottle 2 with 4 ml redist. water.
3. Dissolve contents of one bottle 3 with 0.6 ml redist. water.
Stability of reagents
The contents of bottle 1 are stable at 2-8°C (see pack label).
Bring solution 1 to 20-25°C before use.
The contents of bottle 2 are stable at 2-8°C (see pack label).
Solution 2 is stable for 3 weeks at 2-8°C, or for 2 months at 15 to 25°C.
The contents of the bottles 3 are stable at 2-8°C (see pack label).
Solution 3 is stable for 5 days at 2-8°C.
Procedure
Wavelength2: 340 nm, Hg 365 nm or Hg 334 nm
Glass cuvette3: 1.00 cm light path
Temperature: 20-25°C
Final volume: 2.950 ml
Read against air (without a cuvette in the light path) or against water
Sample solution: 1-50 μg D-malic acid/assay4 (in 0.100-1.800 ml sample
volume)
* Rinse the enzyme pipette or the pipette tip of the piston pipette with sample solution before
dispensing the sample solution.
** For example, with a plastic spatula or by gentle swirling after closing the cuvette with
Parafilm (trademark of the American Can Company, Greenwich, Ct., USA)
1 hepes = 4-(2-hydroxyethyl)-1-piperazine ethanesulfonic acid
2 The absorption maximum of NADH is at 340 nm. On spectrophotometers, measurements
are taken at the absorption maximum; if spectralline photometers equipped with a mercury
vapor lamp are used, measurements are taken at a wavelength of 365 nm or 334 nm.
3 If desired disposable cuvettes may be used instead of glass cuvettes.
4 See instructions for performance of assay
D-Malate + NAD+ D-MDH, decarb.
pyruvate + CO2 + NADH + H+
Pipette into cuvettes Blank Sample
solution 1
solution 2
sample solution*
redist. water
1.000 ml
0.100 ml
-
1.800 ml
1.000 ml
0.100 ml
0.100 ml
1.700 ml
Mix**, and read absorbances of the solutions (A1) after approx. 6 min. Start
reaction by addition of:
solution 3 0.050 ml 0.050 ml
Mix**, wait for completion of the reaction (approx. 20 min) and read absorbances
of blank and sample (A2).
Determine the absorbance differences (A2-A1) for both, blank and sample.
Subtract the absorbance difference of the blank from the absorbance
difference of the sample.
ΔA = (A2-A1)sample - (A2-A1)blank
The measured absorbance differences should, as a rule, be at least 0.100
absorbance units to achieve sufficiently precise results (see “Instructions for
performance of assay“ and “Sensitivity and detection limit”, pt. 4).
Calculation
According to the general equation for calculating the concentration:
V = final volume [ml]
v = sample volume [ml]
MW = molecular weight of the substance to be assayed [g/mol]
d = light path [cm]
ε = extinction coefficient of NADH at:
340 nm = 6.3 [l × mmol-1 × cm-1]
Hg 365 nm = 3.4 [l × mmol-1 × cm-1]
Hg 334 nm = 6.18 [l × mmol-1 × cm-1]
It follows for D-malic acid:
If the sample has been diluted during preparation, the result must be multiplied
by the dilution factor F.
When analyzing solid and semi-solid samples which are weighed out for
sample preparation, the result is calculated from the amount weighed:
1. Instructions for performance of assay
The amount of D-malic acid present in the assay has to be between 2 g
and 50 g (measurement at 365 nm) or 1 g and 30 g (measurement at
340, 334 nm), respectively. In order to get a sufficient absorbance difference,
the sample solution is diluted to yield a D-malic acid concentration between
0.1 and 0.5 g/l or 0.06 and 0.3 g/l, respectively.
Dilution table
If the measured absorbance difference (A) is too low (e.g. 0.100), the
sample solution should be prepared again (weigh out more sample or dilute
less strongly) or the sample volume to be pipetted into the cuvette can be
increased up to 1.800 ml. The volume of water added must then be reduced
to obtain the same final volume in the assays for sample and blank. The new
sample volume v must be taken into account in the calculation.
2. Technical information
2.1 Note, that in the case of trace level analysis of D-malic acid all reagents
used for sample preparation must be absolutely free of D-malic acid.
2.2 In carrying out the calculation, a clear indication should be given as to
whether the results are to be given as D-malic acid (molar mass
134.09 g/mol) or as D-malate (molar mass 132.07g/mol). (In enzymatic
determinations, the D-malate ion is measured.)
c =
V × MW
× A [g/l]
ε × d × v × 1000
c =
2.950 × 134.09
× A =
3.956
× A [g D-malic acid/
ε × 1.00 × 0.100 × 1000 ε sample solution]
ContentD-malic acid =
cD-malic acid [g/l sample solution]
× 100 [g/100 g]
weightsample in g/l sample solution
Estimated amount of
D-malic acid per liter
measurement at
Dilution
with water
Dilution
factor F
340 or 334 nm 365 nm
0.3 g
0.3-3.0 g
3.0-30 g
> 30 g
0.5 g
0.5-5.0 g
5.0-50 g
> 50 g
-
1 + 9
1 + 99
1 + 999
1
10
100
1000
0101.1. 1 273 035 rb bz
2
3. Specificity (Ref. 1)
D-Malic acid reacts fast. A side activity of the enzyme reacts with L-tartaric
acid at a lower speed. At the same concentrations of L-tartaric acid and Dmalic
acid a slight “creep reaction” appears which may be eliminated by
extrapolation. At a high surplus of L-tartaric acid, proceed as described for
the determination of D-malic acid in wine and grape juice.
Note:
Commercial D-malic acid may contain approx. 1-4 % L-malic acid (Ref. 1).
4. Sensitivity and detection limit (Ref. 1)
The smallest differentiating absorbance for the procedure is 0.005
absorbance units. This corresponds to a maximum sample volume v =
1.800 ml and measurement at 340 of a D-malic concentration of 0.2 mg/l
sample solution (if v = 0.100 ml, this corresponds to 3 mg/l sample solution).
The detection limit of 0.35 mg/l is derived from the absorbance difference of
0.010 (as measured at 340 nm) and a maximum sample volume v = 1.800 ml.
5. Linearity
Linearity of the determination exists from approx. 1 g D-malic acid/assay
(0.35 mg D-malic acid/l sample solution; sample volume v = 1.800 ml) to
50 g D-malic acid/assay (0.5 g D-malic acid/l sample solution; sample
volume v = 0.100 ml).
6. Precision
In a double determination using one sample solution, a difference of 0.005 to
0.010 absorbance units may occur. With a sample volume of v = 0.100 ml
and measurement at 340 nm, this corresponds to a D-malic acid concentration
of approx. 3-6 mg/l. (If the sample is diluted during sample
preparation, the result has to be multiplied by the dilution factor F. If the
sample is weighed in for sample preparation, e.g. using 1 g sample/100 ml =
10 g/l, a difference of 0.03-0.06 g/100 g can be expected.)
The following data have been published in the literature:
x = 31.3 μM sample solution E339 nm = 0.199 CV = 1.01 % n = 10
x = 61.7 μM sample solution E339 nm = 0.387 CV = 0.83 % n = 10
x = 125.4 μM sample solution E339 nm = 0.791 CV = 0.79 % n = 10
(Ref. 1)
Wine:
r 5%, corresponding r = 0.05 × xi
R 10%, corresponding R = 0.10 × xi
xi = content of D-malic acid in g/l (Ref. 2.1)
r = 0.05 × xi
R = 0.1 × xi
xi = content of D-malic acid in g/l (Ref. 2.2)
7. Interference/sources of error
Tannins contained in the sample could effect a slight inhibition of the assay:
the presence of 50 g pyrogallol delays the conversion of D-malic acid for
approx. 5 min.
A “creep reaction” appears with plant dyes. Use a sample blank, if
necessary: the test procedure contains all components except the startingenzyme;
the absorbances of blank, sample and sample blank should be
measured immediately one after another and are used for the calculation of
the absorbance differences:
A = (A2-A1)sample - (A2-A1)reagent blank - (A2-A1)sample blank
A “creep reaction” of 0.5 mA/min also appears with 2-oxoglutarate at a
concentration of 100 g/assay.
An inhibition is also recognized with lead ions, 0.1 g/assay: after 20 min
under the reaction conditions approx. 85% of D-malic acid is to be found.
8. Recognizing interference during the assay procedure
8.1 If the conversion of D-malic acid has been completed according to the
time given under “Procedure“ it can be concluded in general that no
interference has occurred.
8.2 On completion of the reaction, the determination can be restarted by
adding D-malic acid (qualitative or quantitative): if the absorbance is
altered subsequent to the addition of the standard material, this is also
an indication that no interference has occurred.
8.3 Operator error or interference of the determination through the presence
of substances contained in the sample can be recognized by carrying
out a double determination using two different sample volumes (e.g.
0.100 ml and 0.200 ml): the measured differences in absorbance should
be proportional to the sample volumes used.
When analyzing solid samples, it is recommended that different quantities
(e.g. 1 g and 2 g) be weighed into 100 ml volumetric flasks. The
absorbance differences measured and the weights of sample used
should be proportional for identical sample volumes.
8.4 Possible interference caused by substances contained in the sample can
be recognized by using an internal standard as a control: in addition to
the sample, blank and standard determinations, a further determination
should be carried out with sample and assay control solution in the
same assay. The recovery can then be calculated from the absorbance
differences measured.
8.5 Possible losses during the determination can be recognized by carrying
out recovery tests: the sample should be prepared and analyzed with
and without added standard material. The additive should be recovered
quantitatively within the error range of the method.
9. Reagent hazard
The reagents used in the determination of D-malic acid are not hazardous
materials in the sense of the Hazardous Substances Regulations, the
Chemicals Law or EC Regulation 67/548/EEC and subsequent alteration,
supplementation and adaptation guidelines. However, the general safety
measures that apply to all chemical substances should be adhered to.
After use, the reagents can be disposed of with laboratory waste, but local
regulations must always be observed. Packaging material can be disposed
of in waste destined for recycling.
10. General information on sample preparation
In carrying out the assay:
Use clear, colorless and practically neutral liquid samples directly, or
after dilution according to the dilution table, and of a volume up to 1.800 ml;
Filter turbid solutions;
Degas samples containing carbon dioxide (e.g. by filtration);
Adjust acid samples to approx. pH 8-9 by adding sodium or potassium
hydroxide solution;
Adjust acid and weakly colored samples to approx. pH 8-9 by adding
sodium or potassium hydroxide solution and incubate for approx. 30 min;
Measure “colored“ samples (if necessary adjusted to pH 8-9) against a
sample blank (= buffer or redist. water + sample), adjust the photometer to
0.000 with the blank in the beam;
Treat “strongly colored“ samples that are used undiluted or with a higher
sample volume with activated charcoal e.g. 6 g/100 ml or with polyvinylpolypyrrolidone
(PVPP; e.g. 8-20g/100 ml);
Crush or homogenize solid or semi-solid samples, extract with water or
dissolve in water and filter if necessary.
11. Application examples
Determination of D-malic acid in fruit juices (Ref. 3.1)
a) Colorless or faintly colored juices (citrus fruits, pear, pineapple, apricot,
apple):
Adjust 25 ml of the fruit juice to pH 7-8 with KOH (2 M) and make up to
50 ml with redist. water. Add 3 g of activated charcoal or 4 g PVPP, mix,
stir for 2 min and filter. Use 1.000 to 1.800 ml of the filtrate for the determination.
b) Intensely colored juices (cherry, black and red currant):
Adjust 25 ml of the fruit juice to pH 7-8 with KOH (2 M) and make up to
50 ml with redist. water. Add 3 g of activated charcoal or 4 g PVPP, mix,
stir for 2 min and filter. Use 0.100 to 0.200 ml of the filtrate for the determination.
c) White grape juice:
Add 250 mg solid calcium hydroxide and 10 ml ethanol (approx. 98%) to
50 ml fruit juice and stir for 2 min. Adjust the pH to 7-8 with HCI (2 M).
Transfer the liquid quantitatively into a 100 ml volumetric flask, make up
to the mark with water, mix and filter. Use 0.500 to 1.500 ml of the filtrate
for the determination.
d) Red grape juice:
Add 250 mg solid calcium hydroxide and 10 ml ethanol (approx. 98 %) to
50 ml fruit juice and stir for 2 min. Adjust the pH to 7-8 with HCI (2 M).
Transfer the liquid quantitatively into a 100 ml volumetric flask, make up
to the mark with redist. water, mix and filter. Add 3 g of activated charcoal,
mix, stir for 2 min and filter again. Use 0.100 to 0.200 ml of the filtrate
for the determination.
Determination of D-malic acid in wine (acc. to Beutler, Ref. 1.)
Mix 25 ml of wine, 125 mg calcium hydroxide and 5 ml ethanol (approx.
98%) for 2 min; adjust pH 7-8 with potassium hydroxide solution; transfer
quantitatively into a 50 ml volumetric flask and fill up to the mark with redist.
water. Filter and use clear, colorless filtrate with a volume of v = 1.000 -
1.800 ml for the assay.
Strongly colored filtrates or filtrates, which show "creep reactions", must be
decolorized and treated as follows:
Mix 10 ml of filtrate and 2 g of wet polyvinylpolypyrrolidone (PVPP), stir for
2 min and filter using a fluted filter paper. Use the filtrate with a volume of
v = 1.000-1.800 ml for the assay.
If the reaction does not stop (e.g. in the analysis of wine) after 20 min, read
the absorbance in 2 min time intervals until a constant absorbance increase
for each 2 min interval is reached.
If the absorbances A2 increase constantly, extrapolate the absorbances to
the time of addition of solution 3 (D-MDH, decarb.).
Determination of D-malic acid in wine and grape juice (acc. to Hunger
et al., Ref. 3.2)
Weigh 2.5 (solid) potassium chloride into a 50 ml-volumetric flask, add 25 ml
wine resp. grape juice, and dissolve potassium chloride either by rigourously
shaking of the volumetric flask or by means of a magnetic stirrer. Add 0.5 ml
glacial acetic acid, mix, make up to the mark with portions of ethanol (96 %;
v/v). Mix and store volumetric flask in a refrigerator overnight.
Filter solution, adjust 20 ml filtrate to pH 9 with KOH (first with 2 M KOH to
pH 8, and then with 0.2 M KOH to pH 9), transfer into a 25 ml volumetric
flask, and make up to the mark with redist. water. For decolorization add
0.5 g activated charcoal, mix and filter through a 0.2 m-filter. Use the filtrate
for the determination. (The addition of activated charcoal is also
recomended for the analysis of white wine.)
Note:
Samples which do not contain L-tartaric acid are prepared as follows: adjust
20 ml sample to pH 9 with KOH, transfer into a 25 ml volumetric flask, and
make up to the mark with redist. water. For decolorization add 0.5 g activated
charcoal, mix and filter through a 0.2 μm-filter. Use the filtrate for the determination.
Determination of D-malic acid in apples
Mince and homogenize the apples. Weigh approx. 40 g of sample material
into a 100 ml beaker and add approx. 20 ml of boiling redist. water. Boil for
10 min and allow to cool to 20-25°C. Adjust to pH 7-8 with potassium
hydroxide solution (1 M). Transfer the content of the beaker quantitatively
into a 100 ml volumetric flask and fill up to the mark with redist. water. Mix
the solution and filter using a fluted filter paper. Add 0.6 g activated charcoal
to 10 ml filtrate, stir for 2 min and filter using a fluted filter paper. Use a volume
v = 0.500 ml of the clear filtrate for the assay.
12. Further applications
The method may also be used in research when analyzing biological
samples.
For details of sampling, treatment and stability of the sample see Gutmann,
I. & Wahlefeld, A. W. (1974) in: Methods of Enzymatic Analysis (Bergmeyer,
H. U., ed.) 2nd ed., vol. 3, pp. 1586-1587, Verlag Chemie, Weinheim/Academic
Press, Inc., New York and London
References
1. Beutler, H.-O. & Wurst, B. (1990) A New Method for the Enzymatic Determination of DMalic
Acid in Foodstuffs, Deutsche Lebensmittel-Rundschau 86, 341-344 und 386-389
2.1 Recueil des méthodes internationales d'analyse des vins et des moûts, Complément no
1 à l'édition officielle de juin 1990, OFFICE INTERNATIonAL DE LA VIGNE ET DU VIN,
Annexe A, S. 1-3
2.2 Amtsblatt der Europäischen Gemeinschaften L 272 (3. Oktober 1990) Rechtsvorschriften:
Verordnung (EWG) Nr. 2676/90 der Kommission vom 17. September 1990 zur
Festlegung gemeinsamer Analysenmethoden für den Weinsektor (S. 106-108) Official
Journal of the European Communities L 272 (3 October 1990), Commission Regulation
(EEC) No 2676/90 of 17 September 1990 determining Community methods for the analysis
of wines (pp. 106-108) ; L 99 (14. April 1999) Commission Regulation (EU) No 761/
1999 of 12 April 1999 for the change of the Commision Regulation (EEC) No 2676/90
determining Community methods for the analysis of wines
2.3 Europäische Norm/European Standard EN 12138 (Dez. 1997) Frucht- und Gemüsesäfte:
Enzymatische Bestimmung des Gehaltes an D-Äpfelsäure - Spektralphotometrische
Bestimmung von NAD (Fruit and vegetable juices - Enzymatic determination of
D-malic acid content - NAD spectrometric method)
2.4 Deutsche Norm DIN EN 12138 (1997) Frucht- und Gemüsesäfte, Teil 13: Enzymatische
Bestimmung des Gehaltes an D-Äpfelsäure; Spektralphotometrische Bestimmung von
NAD
2.5 International Federation of Fruit Juice Producers (IFU, Methods of Analysis, no. 64-
1995); contained in "Code of Practice for evaluation of Fruit and Vegetable Juices"
(1996) edited by Association of the Industry of Juices and Nectars from Fruits and Vegetables
of the European Economic Community (A.I.J.N.)
3.1 Beutler, H.-O. & Ara, V. (1992) Enzymatische Bestimmung von D-Äpfelsäure in
Fruchtsäften, Flüssiges Obst 59, 552-554; Enzymatic Determination of D-Malic Acid in
Fruit Juices, Fruit Processing 2, 140-141
3.2 Hunger, Ch., Schuch, R. & Hörtner, H., Bundesanstalt für Lebensmitteluntersuchung
und -forschung, Wien (1995) Enzymatic Determination of D-Malic Acid in Wine and Fruit
Juices, in Current Status and Future Trends in Analytical Food Chemistry, Proceedings of
the Eight European Conference on Food Chemistry (EURO FOOD CHEM VIII), Vol. 3,
715-718
3. Internal standard:
The assay control solution can be used as an internal standard in order to
check the determination for correct performance (gross errors) and to see
whether the sample solution is free from interfering substances:
The recovery of the standard is calculated according to the following
formula:
Pipette into
cuvettes
Blank Sample Standard Sample +
Standard
solution 1
solution 2
sample solution
assay control sln.
redist. water
1.000 ml
0.100 ml
--
1.800 ml
1.000 ml
0.100 ml
0.100 ml
-
1.700 ml
1.000 ml
0.100 ml
-
0.100 ml
1.700 ml
1.000 ml
0.100 ml
0.050 ml
0.050 ml
1.700 ml
Mix, and read absorbances of the solutions (A1) after approx. 6 min.
Continue as described in the pipetting scheme under "Procedure". Follow
the instructions given under "Instructions for performance of assay" and
the footnotes.
recovery =
2 × Asample + standard - Asample × 100 [%]
Astandard
D-Malic acid assay control solution
Concentration: see bottle label
D-Malic acid assay control solution is a stabilized aqueous solution of Dmalic
acid. It serves as an assay control solution for the enzymatic determination
of D-malic acid in foodstuffs and other materials.
Application:
1. Addition of D-malic acid assay control solution to the assay mixture:
Instead of sample solution the assay control solution is used for the assay.
2. Restart of the reaction, quantitatively:
After completion of the reaction with sample solution and measuring of A2,
add 0.050 ml assay control solution of the assay mixture. Read absorbance
A3 after the end of the reaction (approx. 20 min). Calculate the concentration
from the difference of (A3-A2) according to the general equation for
calculating the concentration. The altered total volume must be taken into
account. Because of the dilution of the assay mixture by addition of the
assay control solution, the result differs insignificantly from the data stated
on the bottle label.
Also available:
Test-Combination L-Malic acid, Cat. No. 0 139 068
R-BIOPHARM GmbH
Dolivostraße 10
64293 Darmstadt/Germany
Telefon + 49 61 51 / 81 02-0
Fax + 49 61 51 / 81 02-20
责权声明：
①本版块的所有文章及图片均为客户自行编辑，其版权为客户所有，客户需保证其编辑的文章及图片均无侵犯任何第三方的合法权益，如被第三方维权，由客户承担全部责任；
② 本网站仅为展示平台，如要转载，请与我网站联系协助获得授权；
③发布内容如有侵权，请及时联系我网站进行删除。
※ 联系电话：400-854-6788
