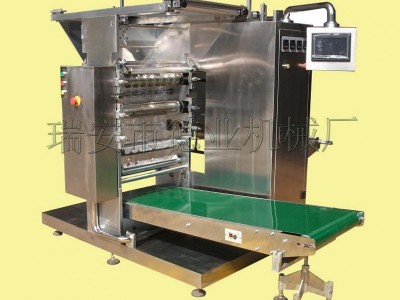

PML-900Intelligent Four Side Sealing Multi-lane Liquid Packing Machine
液体包装机用途：该机适用于医药，食品，日化等行业中的液体物料并有计量要求的中小袋四边封包装，如洗发水，棒棒冰，酒，酱油，醋，医药剂水，化工水剂等。
Usage: Machine is suitable for packing liquid material in the medicine, food, and daily chemical industries, and automatic packing into sachets with measuring requirement. Such as shampoo, ice lolly, wine, soy sauce, vinegar, medicine water, chemical agent water and so on.
液体包装机特点：
1. 性能先进，强度高，噪声低，结构紧凑，运行平稳，使用寿命长。放膜机械可成水平90°旋转并增设了接膜机械，使换接膜与维修更加方便。
2. 采用五伺服同步驱动，人机界面上触摸调整，通过PLC控制，使各执行机构能精确自动同步定位。
3. 自动化程度高，本机从纵封，纵切，横封，充填装料，打码，切易撕口，切虚线，横切，直至成品袋输出能一次性完成。
4. 采用高精度整体碾压式热封辊，作为封合模具。四边封口，多列袋形式。包装速度快，且袋形平整，精致美观，包装效率高。
5. 调整快捷方便，不需要更换模具就可以进行袋长无级调整。且纵封，横封，充填料，打批号，切虚线，横切等执行机构均可通过人机界面进行调整。
6. 灌装计量精确，针对液体物料专门配以离心式液体泵加料，计量控制采用高精度电磁阀，每阀配有瞬间大流量稳压装置，使每列袋都能独立方便地进行精细准确计量调整。
7. 采用光电跟踪系统，保证了包装袋双面图案自动对版，并具有自动计数功能。
8. 本机型特增设了行膜自动纠偏与行膜阻尼机构，保证行膜的直线度与张紧度的稳定性，从而大大提高了袋形的平整与美观程度。
9. 对包材适应性强，本机封合温度具有自动控制功能，且控制精度高（±1℃左右）。可适应国内外生产的多种包装薄膜，如PET/AL/PE, PET/PE, NY/ALPE, NY/PE等。
10. 可适当增设附加功能，如袋切断可选配虚刀，平刀，甚至异型刀，及选配各种报警要求等。
Characteristic:
1. Advanced performance, high power, low noise, compact structure, operate steadily, easy to maintain, and has a long life span. Film sending mechanism can rotate with 90°in level, and add with film contacting mechanism, which make film change and maintain easier.
2. Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.
3. A high degree of automation, machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting dotted line cutting, and transverse cutting to outputting finished sachets.
4. High precision whole rolling type heat sealing rollers are adopted as sealing mould, four side sealing, and multi-lane sachet form. With high packing speed, smooth bag shape, delicate and beautiful, packing and high efficiency.
5. Easy and fast to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting, and transverse cutting through man-machine interface.
6. Accurate in measurement. Regarding to liquid material, specially designed of centrifugal liquid pump of feeding, measuring control adopt high precise electro-magnetic valve, each valve match with voltage regular, each line’s dosage can be adjusted easily and accurately.
7. Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.
8. The machine with film automatic correction and film damping mechanism, to ensure the straightness and tension stability of film, and make the pouch more smooth and beautiful.
9. Adaptability of the package film, the sealing temperature of machine is with automatic control, and has high control accuracy(±1℃). Suitable for most complex film packing film: such as PET/AL/PE, PET/PE, NY/ALPE, NY/PE and so on.
10. Extra functions set up, for example, sachet cutting can choose dotted line knife or flat cutting knife, abnormal shape knife etc, and can choose different kinds of alarm requirement.
液体包装机主要技术参数：
| 项目 型号 | PML－900 |
| 袋长范围（mm） | 50-300 |
| 袋宽范围（mm） | 32-105 |
| 包装速度（time/min） | 30-50（取决于袋子尺寸与材料） |
| 填充容量（ml） | 5-100 |
| 适应包材 | PET/AL/PE, PET/PE, NY/ALPE, NY/PE and so on.. |
| 包材宽度（mm） | 900 |
| 包材外径（mm） | Φ300 |
| 包材芯径（mm） | Φ76 |
| 电源 | 380V 50Hz（可根据客户需要来做） |
| 总功率（Kw） | 12 |
| 毛重（kg） | 1500 |
| 包装箱尺寸（L×W×H mm） | 1680×1280×1950 |
