Accuracy at low oxygen level.

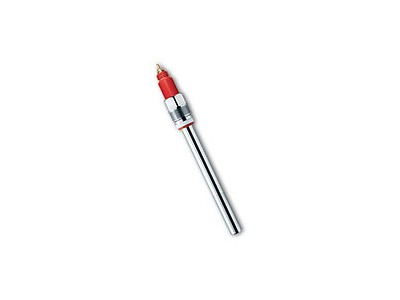

| METTLER TOLEDO’s InPro6900i is the intelligent counterpart for the InPro6900, the proven standard especially in food and beverage applications for low oxygen concentrations. The special electrode design with guard ring around the cathode together with the larger surface of the cathode allows for measurement down to 1ppb dissolved oxygen. Thanks to the integratedISM technologywith Plug and Measure capability makes installation much easier and offers new possibilities for maintenance planning thanks automated self diagnosis and asset management. Together with theiSense Asset Suitealways one step ahead. |
As with all oxygen sensors from METTLER TOLEDO also the ISM sensors fulfill highest requirements for hygienic design in compliance with EHEDG and 3-A standards. The proven maintenance concept with membrane body and replaceable inner body is continued with all i-type sensors.
Features and Benefits| Enhanced diagnostics |
| Permanent sensor monitoring with ISM technology reduces the risk sensor failures. |
| Predictive maintenance |
| The enhanced diagnostics allows for better maintenance planning "as few as possible, as often as necessary". |
| High process safety |
| FDA compliant materials of construction and easy-to-clean high-polished surface (N5 grade) to satisfy increasing regulatory requirements. |
| Reduced service time down to just 5 minutes |
| Thanks to the easy-to-replace membrane body and quick-disconnect interior body. |
| Long sensor lifetime |
| Durable and rugged sensor design for increased resistance to harsh environments. |
| Installation in hazardous zones |
| ATEX certificate: II 1/2GD Ex ia IIC T6/T5/T4/T3, IP6X T 69 °C / T 81 °C / T 109 °C / T 161 °C, SNCH 01 ATEX 3277X; FM approval: IS / I, II, III /1/ ABCDEFG / T6 Ta=60 °C - 53 800 002; Entity. |
规格 - InPro6900i Sensor for dissolved oxygen in ppb level
| 简短描述 | Sterile/hygieic process for low oxygen level |
| 精度 | 1 % or 1 ppb |
| 检测限 | 1 ppb |
| 可蒸汽消毒 | yes |
| 可高温高压消毒 | no |
| 液接材质 | stainless steel (AISI316L) with 3.1B certificates |
| 机械耐压 | max. 12 bar (174 psi) absolute |
| ISM智能传感器管理 | yes |
| ATEX 防爆认证 | II 1/2GD Ex ia IIC T6/T5/T4/T3, IP6X T 69 °C / T 81 °C / T 109 °C / T 161 °C, SNCH 01 ATEX 3277X |
| FM 防爆认证 | IS / I, II, III /1/ ABCDEFG / T6 Ta=60 °C - 53 800 002; Entity |
| 接头 | VP |
| Insertion length | for 12 mm: 70, 120, 220 mm (2.8", 4.7", 8.7") |
