二、 主要技术参数
1. 工作条件：电源电压220V 50HZ
2、 环境条件：温度10-40℃ 相对温度<85% 环境无严重粉尘污染，腐蚀性 气体。
3、 输入空气压力 ：0.5Mpa
4、 功率：80W；100W
5、 氮气纯度：99.999%
6、输出流量： HHN - 300 型 0-300ml/min
HHN - 500 型 0-500 ml/min
HHN - 600 型 0-600ml/min
7、 输出压力：0.4Mpa
8、 功率：90W；100W
9、 外型尺寸：38×180×460mm

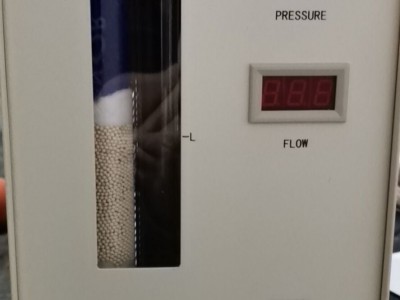

HHN-300 high-purity nitrogen generator is composed of electrolytic separation cell, switching power supply, flow display, voltage stabilization, drying and purification, automatic delay emptying and other systems. The "heart" electrolytic separation cell of this instrument is a multi-layer plate structure, which has the advantages of large electrolysis area, low cell temperature, good performance and higher purity. This instrument is equipped with a non-return device, which can effectively ensure that the instrument does not return fluid. phenomenon.
2. Main technical parameters
1. Working conditions: power supply voltage 220V 50HZ
2. Environmental conditions: the temperature is 10-40℃, the relative temperature is <85%, and there is no serious dust pollution and corrosive gas in the environment.
3. Input air pressure: 0.5Mpa
4. Power: 80W; 100W
5. Nitrogen purity: 99.999%
6. Output flow: HHN-300 type 0-300ml/min
HHN-500 type 0-500 ml/min
HHN-600 type 0-600ml/min
7. Output pressure: 0.4Mpa
8. Power: 90W; 100W
9. Dimensions: 38×180×460mm
