SKF Energy monitoring kit
CMAK 450-ML |
| |
| For compressed air systems |
| |
| This basic SKF Energy monitoring kit makes it possible for any facility to lower their energy cost and reduce their CO2 emissions by monitoring and optimizing the energy used by their compressed air systems. |
| |
| CMAK 450-ML Kit features |  | Cost savings
Can facilitate significant energy and cost reductions without major capital expense | | Dualistic approach
Measure energy data and condition monitoring data at the same time | | Basic kit
Measurements are easy to set up and perform All basic instruments to measure energy efficiency of compressed air systems are featured in one convenient carrying case. | |  |
| CMAK 450-ML Kit includes: |
| |
| SKF Machine Condition Advisor CMAS 100-SL
The SKF Machine Condition Advisor simultaneously measures machine vibration signals and temperature to indicate machine health and bearing condition. | | SKF External sensor kit for the SKF Machine Condition Advisor CMAC 105
The external vibration sensor with magnet provides convenience for hard-to-reach surfaces and more repeatable and accurate measurements. | | SKF Infrared Thermometer CMSS 3000-SL
The heavy duty SKF Infrared Thermometer is a dual laser sighted, non-contact instrument for long range application. | | SKF Inspector 400 Ultrasonic Probe CMIN 400-K
The SKF Inspector 400 Ultrasonic Probe senses high frequency sounds produced by operating equipment, leaks, and electrical discharges and makes them audible. The kit features all of the accessories from the from the SKF Inspector 400 Ultrasonic Probe kit. | | Hioki Clamp-on Power Meter CPT3169-20
Instrument used for obtaining energy relat¬ed measurements for energy conservation programs, ISO 14001 testing, and electrical equipment diagnosis. Power measuring instrument for factory power supply maintenance, and to improve energy-saving efficiency. Measures voltage, current, active power, reactive power, apparent power, power fac¬tor, integrated value, frequency, and har¬monics. | | 2 x Hioki Power Meter Clamps CPT9661
Designed for use with the Hioki Clamp-on Power Meter. CE approved for input of up to 500 Ampere AC | | Caarying case

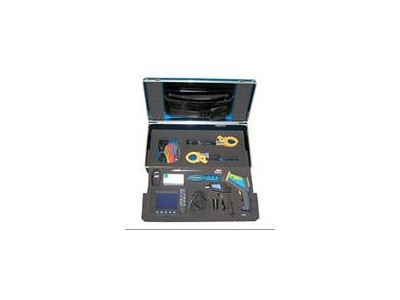

The instruments are packaged in a light, durable aluminum carrying case for industrial environments.
Style: Riveted construction
Weight: 4,2 kg (9.3 lb.) case only
Dimensions:
Length: 660 mm (26 in.)
Width: 330 mm (13 in.)
Depth: 178 mm (7 in)
Color: Anodized and color dyed exterior - finish (Blue) | |
| |
| Ordering details | | CMAK 450-ML | SKF Energy monitoring kit includes: | | | SKF Machine Condition Advisor [CMAS 100-SL] | | | External sensor kit, 100 mV/g accelerometer with 1.5 m integral cable and magnet [CMAC 105 | | | SKF Infrared Thermometer [CMSS 3000-SL] | | | SKF Inspector 400 Ultrasonic Probe Kit [CMIN 400-K] | | | Hioki Clamp-on Power Meter [CPT3169-20] | | | 2 x Hioki Power Meter Clamps [CPT9661] | |
