| SKF Advanced bearing analysis kit CMAK 600-EN |
| |
| For industrial oil analysis and vibration test |
| |
| Supplied ready for use, in a heavy duty alu¬minum case, multi-parameter test kit con¬tains all of the necessary equipment, and consumables for oil and overall vibration condition monitoring. | | | | CMAK 600-EN Kit features |  | Fast accurate results for multiple oil pa¬rameters | | Easy to use, portable kit | | On-site maintenance decision | | Assessment of overall machine condition | |  |
Multiple Measurements
The center of the SKF Advanced bearing analysis kit is the Test Cell, providing simple, accurate results for Water in Oil (Lubricants) and Total base Number (TBN). An easy to read digital display provides in¬structions and test results with a five year (10 000 tests) battery life and built-in memory for recording previous test results. The Test Cell is capable of performing both test parameters in a single cell. Reagents are provided in the kit. |
| |
| A | Light weight glass reinforced body | | | | | B | Simple to use keypad | | | | | C | Electronic display gives step-by-step test instructions | | | | | D | Latest transducer technology for improved accuracy and ease of use | | | | | E | Nonslip twist clips | |  |
| Test Cell
Water in oil
Helps to maintain the equipment by protecting it from damage caused by water in oil. Prevent corrosion, cavitations or machinery failure by detecting water in oil, before any damage occurs.
Minimize instability of additive packages and damaging microbe growth by monitoring your oil.
Fully portable for use on-board or in the field, test cells are extremely robust, durable, and easy to use. | | Test Cell
Total base number
Measuring the total base number provides indication of the oil’s alkaline reserve and ability to neutralize acids from combustion.
The SKF Advanced bearing analysis kit provides modern digital analysis for fast, accurate results that can be trended. The Test Cell gives a quick indication of total base number depletion in lubricants. Avoid fouling within the engine and corrosion of engine components by monitoring the total base number of lubricating oils.
Simple, economical monitoring of lubricants. | | Viscosity
The Visicostick gives a simple go/no go result. Typically detected are 5 to 10% distillate fuel dilutions of an SAE 30 to 40 engine oil as well as increases in viscosity due to oil contamination.
Measuring oil viscosity provides early detection of contamination, fuel ingress and shear thinning.
Suitable for hydraulic oils, diesel engine oils, enclosed gears, and fuel oils. | | Insolubles
Monitoring of combustion related debris and oxidation products
High insolubles will cause lacquer formation on hot surfaces, sticking of piston rings, and wear of cylinder liner, and bearing surfaces. Detection of insolubles from diesel engine combustion products such as fuel ash, carbon, partially oxidized fuel, oil oxidation products, and spent lubrication additive.
Simple and quick to use, the Insolubles Test Papers provide a qualitative result when compared to a chart. | | SKF Machine Condition Advisor
Monitoring of vibration and temperature
The SKF Machine Condition Advisor simultaneously measures machine vibration signals and temperature to indicate machine health and bearing condition. | | Carrying case

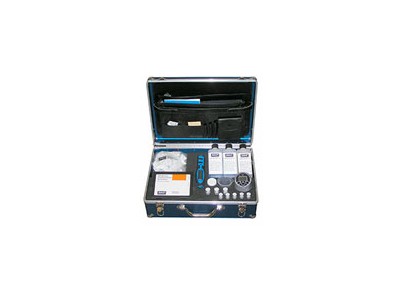

The instruments are packaged in a light, durable aluminum carrying case for industrial environment.
Details
Weight: 2,6 kg(5.7 lb.) case only
Dimensions:
- Length: 450 mm(18 in.)
- Width: 330 mm(13 in.)
- Depth: 150 mm(6 in.)
Color: Anodized and color dyed exterior finish (Blue) | |
| |
| Technical data | | Test Cell | Water in oil: 0.02 to 1%, 200 to 10 000 • ppm, 0 to 10%, 0 to 20% | | | Total base Number (TBN): 5 to 80 TBN• | | Test Paper | Insolubles: Qualitiative | | Viscostick | Viscosity: Go/No go | Velocity, enveloped
acceleration, temper¬ature | Please refer to the SKF Machine Condition Advisor section for specifications | |
| |
| Ordering details | | CMAK 600-EN | SKF Advanced bearing analysis kit | | | SKF Machine Condition Advisor [CMAS 100-SL] and standard accessories | | | Test Cell [one (1) each] | | | Visicostick [one (1) each] | | | Chromotography papers, 100 OFF [one (1) each] | | | Reagent A [two (2) each] | | | Reagent C [one (1) each] | | | 10 ml disposable syringe [three (3) each] | | | 5 ml disposable syringe [five (5) each] | | | Water in oil test reagent, pack of 50 [one (1) each] | | | Test agitator [one (1) each] | | | Stainless steel scissors [one (1) each] | | | Plastic disposable gloves, pack of 100 [one (1) each] | | | 100 ml beaker, plastic [one (1) each] | | | Stirring rod, plastic [one (1) each] | | | Instruction manuals | |
